SPECIFICATIONS

Application: Computer,Multimedia,Monitor,DVD Player,Projector,Television,TV box,MP3 / MP4 Player,Camera

Brand Name: VBDWRM

Certification: CE,RoHS

Choice: yes

Connector A: HDMI-Compatible

Connector B: HDMI-Compatible

Feature: HDMI-Compatible2.1

Gender: Female

High-concerned chemical: None

Model Number: H2151

Origin: Mainland China

Outer Diameter: HDMI Switch

Package: Yes,Carton Box

Shielding: Combination

Type: HDMI-Compatible Cables

These HDMI Switches allow you to switch among more than 1 working video sources and send it to a single HD Displays. This is especially convenient when you have more HDMI video sources than the hdmi port of your HDTV.

The HDMI Switcher supports selecting either by manual button or the included remote control. It is very convenient and helps protect the hdmi port of your devices.

Important note:

1)The HDMI Switch comes with 2 version. The inexpensive model marked as 4K 60Hz HDMI 2.0 is of HDMI 2.0 Switch and it supports in and out resolutions up to 4K@60Hz.

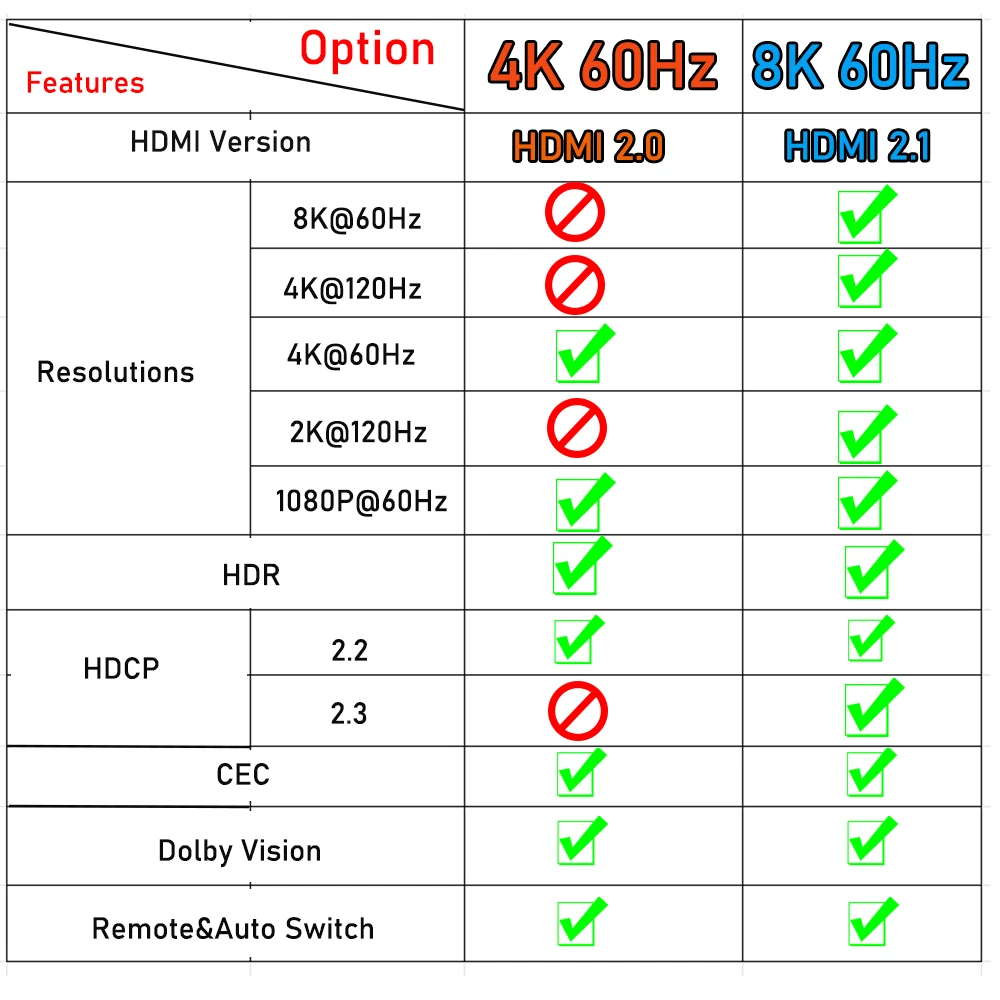

2)And the other model marked as 8K 60Hz HDMI 2.1 is of HDMI 2.1 Switch and it supports in&out resolutions up to 8K@60Hz.Pls check comparison below.

3)4K Video transmission has very high requirements on cables, when using with HDMI 2.0 devices, pls use ATC certified premium high speed HDMI 2.0 and above cable. And for pleasant video expenrience, the max. length shall not be more than 5M.

4)When using with HDMI 2.1 devices and experience HDMI 2.1 features such as 4K@120Hz,8K@60Hz, the max. length shall not be more than 3M. And the cables must be of ATC certified ultra high speed HDMI 2.1 cable.

5)Auto Switching refers to that when there is a new or tunred on video source connected to the input, the output will be switched to the new connected.

6)Our switch only supports switching among connected and working inputs.

7)Pls be noted that the silk printing of these switch might be changed without further notice.

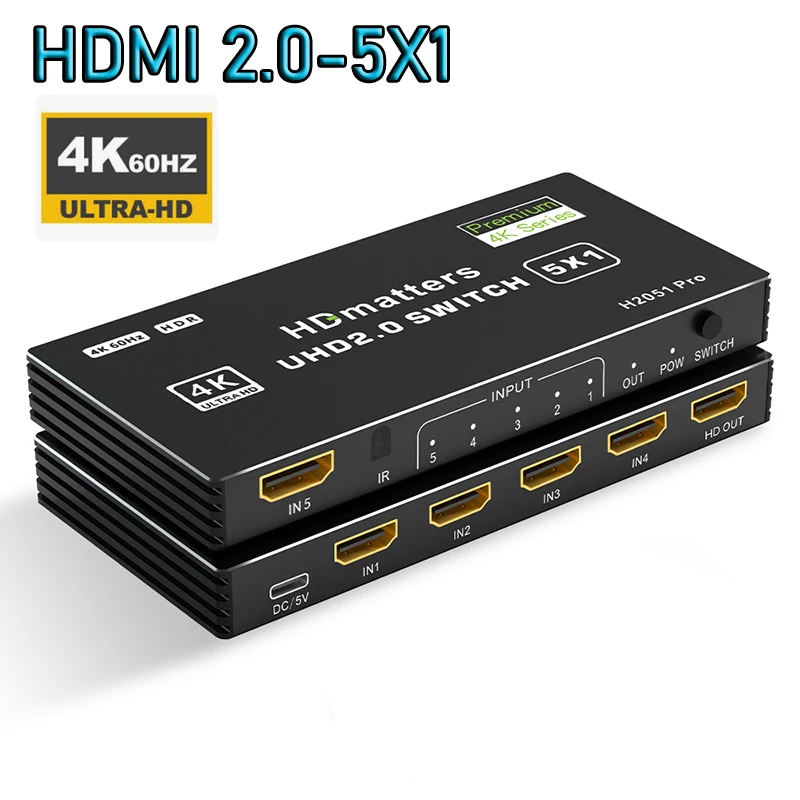

8)Pls be noted that for the HDMI 5 in 1 out, the in 5 is on the backside.

9)We have more than 1 brands and the switch might come with various kinds of logo printing..Pls allow some tolerance.

Featurs&specs.

4K 60Hz-HDMI 2.0

Supports video resolutions up to 4K@60Hz YCbCr 4:4:4

More than HDMI video inputs and 1 HDMI video output

Supports up to 18Gbps video bandwidth

Complies with the HDMI 2.0, HDCP 2.2

Supports HDR, HDR10, Dolby Vision, and Hybrid Log‑Gamma (HLG)

USB powered with low power consumption

Includes an IR remote control(Battery is not included)

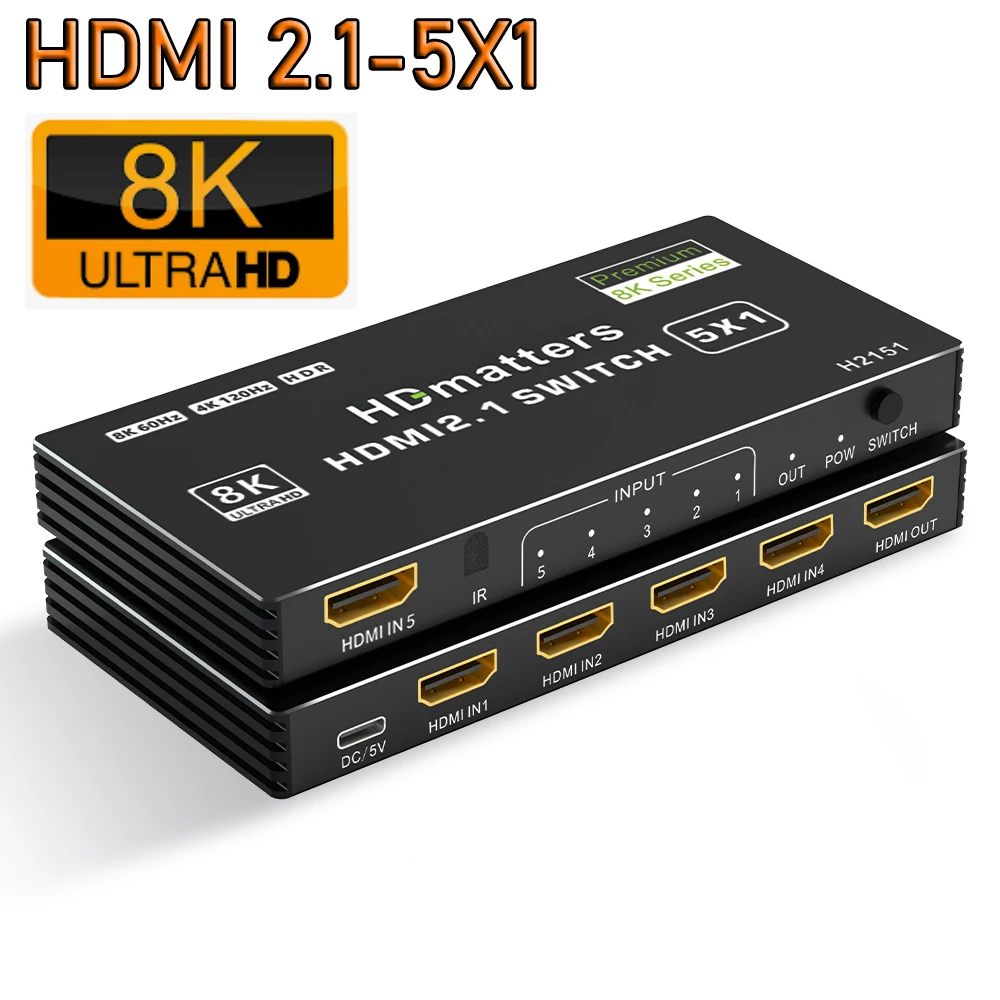

8K 60Hz-HDMI 2.1

HDMI 2.1 and HDCP 2.3 compliant

Deliver up to 48Gbps bandwidth

Supports resolutions up to 8K@60Hz and 4K@120Hz

HDR, HDR10, HDR 10+, Dolby Vision, and HDLG pass‑through

Support HDMI CEC Passthrough

VRR, FVA, and ALLM

Auto,button and Remote control switch supported

What's in the package:

HDMI Switch X1(option)

Remote control X1(battery is not included)

USB power cableX1(adapter is not included)
